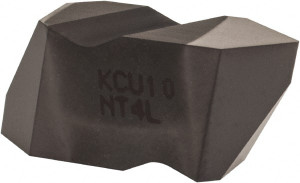

Kennametal NT4L KCU10 Carbide Threading Insert AlTiN Finish, Internal/External, Partial Profile 60°, 2-6.25mm, 1.25-6.25mm, Series Top Notch 4176121 - 58447301
Brand: Kennametal- SKU:
- 58447301
- ID:
- 667004
$48.57
Kennametal NT4L KCU10 Carbide Threading Insert AlTiN Finish, Internal/External, Partial Profile 60°, 2-6.25mm, 1.25-6.25mm, Series Top Notch
Manufacturer Part #: 4176121
S/N: 58447301
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NT |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10 |
| Thread Standard | Partial Profile 60 Degree |
| Insert Hand | Left Hand |
| Internal Pitch | 2.00 to 6.25 mm, 4 to 12 TPI |
| External Pitch | 1.25-6.25 mm, 4-20 TPI |
| Included Angle | 60degree |
| Series | Top Notch |
| Coating Process | PVD |
| Tip to Top of Insert (Decimal Inch) | 0.1280 |
| Corner Radius (Decimal Inch) | 0.0067 |
| Corner Radius (mm) | 0.17mm |
| Thickness (mm) | 6.48mm |
| Insert Size | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2550in |
| Finish Coating | AlTiN |
| Thread Type | Internal, External |
| UNSPSC Code | 23291804 |
