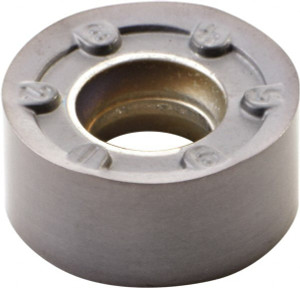

Kennametal RNGJ1204M0ELD KC522M Carbide Milling Insert AlTiN Finish, 0.187" Thick 4146584 - 58490517
Brand: Kennametal- SKU:
- 58490517
- ID:
- 661494
$41.46
Kennametal RNGJ1204M0ELD KC522M Carbide Milling Insert AlTiN Finish, 0.187" Thick
Manufacturer Part #: 4146584
S/N: 58490517
UNSPSC: 23291601
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Insert Style | RNGJ |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | KC522M |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1870 |
| Coating/Finish | AlTiN |
| Relief Angle | 0 |
| Insert Size Code | 1204 |
| Material Grade | C1 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Neutral |
| Series | RNGJ |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.20 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, K, S |
| Ansi Code | RNGJ1204M0ELD |
| Iso Code | RNGJ1204M0ELD |
| Standards | ANSI, ISO |
| Rake Angle | 15 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | RNGJ1204M0ELD |
| Cutter Series Compatibility | Rodeka-12 |
| Chip Breaker | LD |
| Material Application | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.4724 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4724 |
