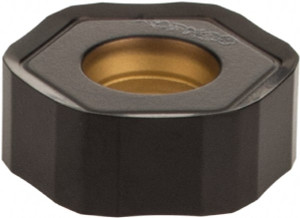

Kennametal HNPJ43ANSNGD KCPM20 Carbide Milling Insert TiN/MT/TiCN/Al2O3 Finish, 0.175" Thick 4119698 - 58490657
Brand: Kennametal- SKU:
- 58490657
- ID:
- 661434
$32.76
Kennametal HNPJ43ANSNGD KCPM20 Carbide Milling Insert TiN/MT/TiCN/Al2O3 Finish, 0.175" Thick
Manufacturer Part #: 4119698
S/N: 58490657
UNSPSC: 23291601
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Insert Style | HNPJ |
| Insert Size | 4 |
| Insert Material | Solid Carbide |
| Insert Shape | Hexagon |
| Manufacturer Grade | KCPM20 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 12 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1750 |
| Coating/Finish | TiN, TiCN, Al2O3 |
| Relief Angle | 0.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2536 |
| Insert Size Code | 43 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Neutral |
| Series | HNPJ |
| Coating Process | MTCVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.20 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Hard Material |
| Primary Workpiece Material Code | P, M, K, H |
| Ansi Code | HNPJ43ANSNGD |
| Iso Code | HNPJ0604ANSNGD |
| Standards | ANSI, ISO |
| Rake Angle | 15 |
| Cutting Edge Style | Honed T-Land |
| Manufacturers Catalog Number | HNPJ0604ANSNGD |
| Cutter Series Compatibility | Dodeka |
| Chip Breaker | GD |
| Material Application | Steel, Stainless Steel, Cast Iron, Hard Material |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 120 |
| Width (Decimal Inch - 4 Decimals) | 0.4724 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4724 |
