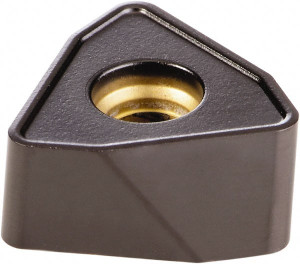

Kennametal WOEJ090512SRHD KCPK30 Carbide Milling Insert TiN/TiCN/Al2O3 Finish, 0.29" Long x 0.215" Thick 4034881 - 58490798
Brand: Kennametal- SKU:
- 58490798
- ID:
- 661177
$44.35
Kennametal WOEJ090512SRHD KCPK30 Carbide Milling Insert TiN/TiCN/Al2O3 Finish, 0.29" Long x 0.215" Thick
Manufacturer Part #: 4034881
S/N: 58490798
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | WOEJ |
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | KCPK30 |
| Corner Radius (Decimal Inch) | 0.0480 |
| Corner Radius (mm) | 1.22 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2150 |
| Coating/Finish | TiN, TiCN, Al2O3 |
| Relief Angle | 0 |
| Insert Size Code | 090512 |
| Material Grade | C1, C5, C6 |
| Inscribed Circle (Decimal Inch) | 0.3510 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Series | WOEJ |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.14 |
| Hole Diameter (Decimal Inch) | 0.1402 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, K, S |
| Ansi Code | WOEJ090512SRHD |
| Iso Code | WOEJ090512SRHD |
| Standards | ANSI, ISO |
| Rake Angle | 15 |
| Cutting Edge Style | Honed T-Land |
| Manufacturers Catalog Number | WOEJ090512SRHD |
| Cutter Series Compatibility | KenFeed |
| Chip Breaker | HD |
| Material Application | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.3510 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4598 |
