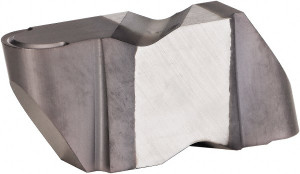

Kennametal NR3031LK KCU10 Carbide Grooving Insert AlTiN Finish, LH, 1.58mm Cutting Width, 2.39mm Max Depth, Series Top Notch 4175949 - 58495227
Brand: Kennametal- SKU:
- 58495227
- ID:
- 650135
$42.47
Kennametal NR3031LK KCU10 Carbide Grooving Insert AlTiN Finish, LH, 1.58mm Cutting Width, 2.39mm Max Depth, Series Top Notch
Manufacturer Part #: 4175949
S/N: 58495227
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NR |
| Cutting Width (Decimal Inch) | 0.0622 |
| Cutting Width (mm) | 1.58 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0941 |
| Maximum Depth of Cut (mm) | 2.39 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCU10 |
| Full Radius | Yes |
| Corner Radius (Decimal Inch) | 0.0311 |
| Corner Radius (mm) | 0.79 |
| Insert Holding Method | Clamp |
| Insert Size | 3031 |
| Material Grade | C3, C4 |
| Cutting Height (mm) | 8.74 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.8841 |
| Overall Length (mm) | 22.46 |
| Chip Breaker | K |
| Insert Seat Size | 3 |
| Overall Width (mm) | 4.98 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1960 |
| Included Angle Degree | 55 |
| Coating/Finish | AlTiN |
| Single Or Double End | Double |
