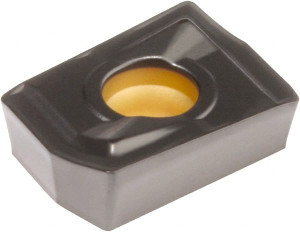

Kennametal DFR030204GD KCU25 Carbide Indexable Drill Insert AlTiN Finish, 6mm Inscribed Circle, 2.88mm Thick, 1/64" Corner Radius, Neutral Cut 5067312 - 58498478

Brand: Kennametal

SKU:: 58498478

ID:: 655885

$28.77

Current Stock:

Adding to cart… The item has been added

Kennametal DFR030204GD KCU25 Carbide Indexable Drill Insert AlTiN Finish, 6mm Inscribed Circle, 2.88mm Thick, 1/64" Corner Radius, Neutral Cut

Manufacturer Part #: 5067312

S/N: 58498478

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style	DFR
Insert Material	Solid Carbide
Manufacturer Grade	KCU25
Inscribed Circle (Decimal Inch)	0.2362
Inscribed Circle (mm)	6.00
Cutting Direction	Neutral
Corner Radius (Inch)	1/64
Corner Radius (mm)	0.40
Chipbreaker	GD
Coating Process	PVD
Hole Diameter (Decimal Inch)	0.0984
Hole Diameter (Mm) ( - 0 Decimals)	2.50
Insert Size	030204
Length (Mm)	8.71
Width (Decimal Inch - 4 Decimals)	0.2362
Length (Decimal Inch - 4 Decimals)	0.3429
Thickness (Decimal Inch - 4 Decimals)	0.1134
Coating/Finish	AlTiN
