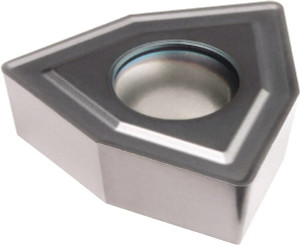

Kennametal DFT090508D63HP KCU40 Carbide Indexable Drill Insert TiN/TiAlN Finish, 15mm Inscribed Circle, 5.25mm Thick, 1/32" Corner Radius, Neutral Cut, 84° Trigon 5066222 - 58498486
Brand: Kennametal- SKU:
- 58498486
- ID:
- 655898
$48.79
Kennametal DFT090508D63HP KCU40 Carbide Indexable Drill Insert TiN/TiAlN Finish, 15mm Inscribed Circle, 5.25mm Thick, 1/32" Corner Radius, Neutral Cut, 84° Trigon
Manufacturer Part #: 5066222
S/N: 58498486
UNSPSC: 23242105
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Insert Style | DFT |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCU40 |
| Inscribed Circle (Decimal Inch) | 0.5906 |
| Inscribed Circle (mm) | 15.00 |
| Cutting Direction | Neutral |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.79 |
| Chipbreaker | HP |
| Coating Process | PVD |
| Shape | Trigon |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.50 |
| Relief Angle | 9 |
| Insert Size | 090508 |
| Length (Mm) | 9.92 |
| Length (Decimal Inch - 4 Decimals) | 0.3906 |
| Included Angle Degree | 84 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2067 |
| Coating/Finish | TiN, TiAlN |
