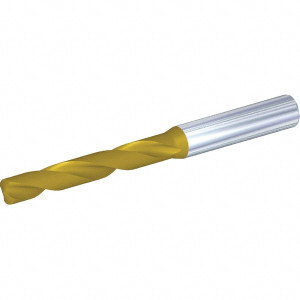

Kennametal 13.5mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit Multilayer TiAlN Finish, Right Hand Cut, 60mm Flute Length, 107mm OAL, Standard Point, Straight Shank 4150328 - 58509910
Brand: Kennametal- SKU:
- 58509910
- ID:
- 737601
$177.77
Kennametal 13.5mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit Multilayer TiAlN Finish, Right Hand Cut, 60mm Flute Length, 107mm OAL, Standard Point, Straight Shank
Manufacturer Part #: 4150328
S/N: 58509910
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 13.50 |
| Drill Bit Size (Decimal Inch) | 0.5315 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multilayer TiAlN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Standard |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Overall Length (mm) | 107 |
| Overall Length (Decimal Inch) | 4.2126 |
| Shank Diameter (mm) | 14.00 |
| Series | B041A-CPG |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 1.6929 |
| Maximum Drilling Depth (mm) | 43.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.00 |
| Drill Point Length (mm) | 2.33 |
| Drill Point Length (Decimal Inch) | 0.0916 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | -0.0007 to 0.0000 in, -0.018 to 0.000 mm |
| Flute Length (Decimal Inch) | 2.3622 |
| Flute Length (mm) | 60.00 |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Drill Bit Size Range (mm) | 13.50 - 17.00 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| UNSPSC Code | 23241635 |
