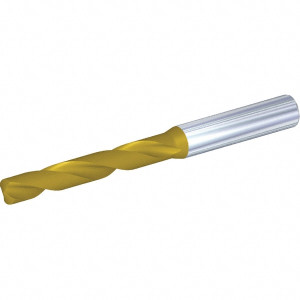

Kennametal 8.3mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit Multilayer TiAlN Finish, Right Hand Cut, 47mm Flute Length, 89mm OAL, Standard Point, Straight Shank 4150256 - 58510686
Brand: Kennametal- SKU:
- 58510686
- ID:
- 737670
$93.40
Kennametal 8.3mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit Multilayer TiAlN Finish, Right Hand Cut, 47mm Flute Length, 89mm OAL, Standard Point, Straight Shank
Manufacturer Part #: 4150256
S/N: 58510686
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 8.30 |
| Drill Bit Size (Decimal Inch) | 0.3268 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multilayer TiAlN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Standard |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5039 |
| Shank Diameter (mm) | 10.00 |
| Series | B041A-CPG |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 1.3780 |
| Maximum Drilling Depth (mm) | 35.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Drill Point Length (mm) | 1.41 |
| Drill Point Length (Decimal Inch) | 0.0554 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | -0.0006 to 0.0000 in, -0.015 to 0.000 mm |
| Flute Length (Decimal Inch) | 1.8504 |
| Flute Length (mm) | 47.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
| Drill Bit Size Range (mm) | 8.00 to 9.50 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
