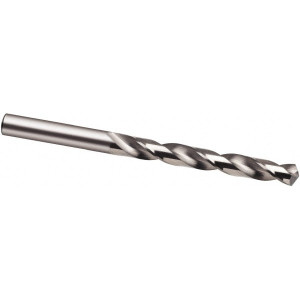

Guhring #14 118° Solid Carbide Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, 80mm OAL, Faceted Point 9007320046200 - 58579400
Brand: Guhring- SKU:
- 58579400
- ID:
- 720861
$33.69
Guhring #14 118° Solid Carbide Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, 80mm OAL, Faceted Point
Manufacturer Part #: 9007320046200
S/N: 58579400
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #14 |
| Drill Bit Size (Decimal Inch) | 0.1819 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 118 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Faceted |
| Primary Workpiece Material | Aluminum |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Bright/Uncoated |
| Primary Workpiece Material Code | N |
| Shank Diameter (Decimal Inch) | 0.1819 |
| Overall Length (mm) | 80.00 |
| Spiral Type | Regular |
| Flute Length (mm) | 47.00 |
| Series | 732 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 4.62 |
| Maximum Drilling Depth (Decimal Inch) | 1.5780 |
| Maximum Drilling Depth (mm) | 40.07 |
| Shank Length (mm) | 33.00 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
