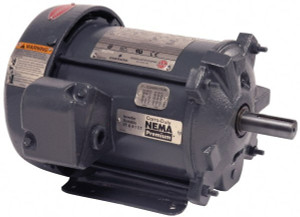

U.S. Motors 7-1/2 hp, TEFC Enclosure, No Thermal Protection, 3,535 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor Size 213T Frame, Rigid Mount, 1 Speed, Ball Bearings, 17.9/8.9 Full Load Amps, Reversible C7P1B - 58755497
Brand: U.S. Motors- SKU:
- 58755497
- ID:
- 573907
$2,286.57
U.S. Motors 7-1/2 hp, TEFC Enclosure, No Thermal Protection, 3,535 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor Size 213T Frame, Rigid Mount, 1 Speed, Ball Bearings, 17.9/8.9 Full Load Amps, F Class Insulation, Reversible
Manufacturer Part #: C7P1B
S/N: 58755497
UNSPSC: 26100000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Motor Type | Three Phase Premium Efficient |
| Enclosure Style | TEFC |
| Horsepower | 7-1/2 |
| Name Plate RPMs | 3535 |
| Frequency (Hz - 0 Decimals) | 60 |
| Frame Size | 213T |
| Mount Style | Rigid |
| Mount Type | Rigid |
| Bearing Type | Ball |
| Full Load Amperage | 17.9/8.9 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Shaft Diameter x Length | 1-3/8 x 3-3/8 in |
| Full Load Efficiency Rating | 91.70 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| Applications | General Purpose |
| Overall Length (Decimal Inch) | 18.0600 |
| Dayton Part Number | 5N809 |
| Ambient Operating Temperature (F) | 40 |
| Thermal Protection | None |
| Number Of Speeds | 1 |
| Type | TEFC |
| Product Service Code | 6105 |
