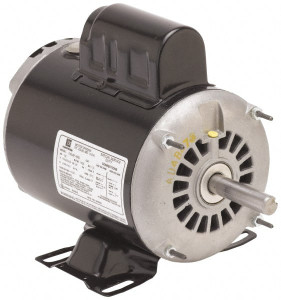

U.S. Motors 3 hp, ODP Enclosure, No Thermal Protection, 3,500 RPM, 115/230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor Size 182 Frame, Rigid Mount, 1 Speed, Ball Bearings, 32.0/16.0 Full Load Amps D3C1P18 - 58756990
Brand: U.S. Motors- SKU:
- 58756990
- ID:
- 573461
$1,664.44
U.S. Motors 3 hp, ODP Enclosure, No Thermal Protection, 3,500 RPM, 115/230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor Size 182 Frame, Rigid Mount, 1 Speed, Ball Bearings, 32.0/16.0 Full Load Amps, F Class Insulation
Manufacturer Part #: D3C1P18
S/N: 58756990
UNSPSC: 26100000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Enclosure Style | ODP |
| Horsepower | 3 |
| Name Plate RPMs | 3500 |
| Voltage | 115, 230V |
| Frequency (Hz - 0 Decimals) | 60 |
| Frame Size | 182 |
| Mount Style | Rigid |
| Mount Type | Rigid |
| Bearing Type | Ball |
| Full Load Amperage | 32/16 |
| Insulation Class | F |
| Shaft Diameter x Length | 7/8 x 2-1/4 in |
| Service Factor Rating | 1.15 |
| Applications | General Purpose |
| Overall Length (Decimal Inch) | 17.2500 |
| Dayton Part Number | 6YV22 |
| Ambient Operating Temperature (F) | 40 |
| Thermal Protection | None |
| Number Of Speeds | 1 |
| Type | ODP |
| Product Service Code | 6105 |
