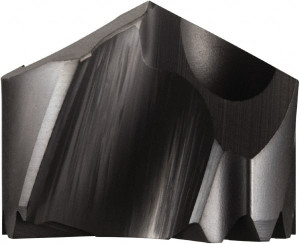

Dormer Pramet R960 13/16" 140D Carbide Replaceable Tip Drill TiAlN Finish, 140° Included Angle, 13/16" Diam, 14.8mm High, Through Coolant, Series R960 0017197 - 59483271
Brand: Dormer Pramet- SKU:
- 59483271
- ID:
- 656372
$169.64
Dormer Pramet R960 13/16" 140D Carbide Replaceable Tip Drill TiAlN Finish, 140° Included Angle, 13/16" Diam, 14.8mm High, Through Coolant, Series R960
Manufacturer Part #: 0017197
S/N: 59483271
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Cutting Diameter (Inch) | 13/16 |
| Cutting Diameter (Decimal Inch) | 0.8125in |
| Cutting Diameter (mm) | 20.64 |
| Tip Material | Solid Carbide |
| Material Grade | P1, P2, M1, M4, K1, K4, S1, S4 |
| Series | R960 |
| Coating Process | PVD |
| Functional Length (Decimal Inch) | 0.3258 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, K, S |
| Standards | ANSI |
| Height (Decimal Inch) | 0.5831 |
| Height (mm) | 8.00 |
| Overall Length/Projection (Decimal Inch) | 0.3258 |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | R96013/16 |
| Coolant Through | Yes |
| Flute Length (mm) | 8.00 |
| Point Type | Four Facet Point |
| Spiral Type | Regular Spiral |
| Style | R960 |
| Applications | High-performance replaceable drill head HYDRA M, diameter 0.8125" (13/16) according to DORMER standard with 140 modified 4-facet split point, solid carbide with Ti-phon coating for drilling stainless steel in combination with HYDRA body size 27/32" or 21 |
| UNSPSC Code | 23242105 |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
