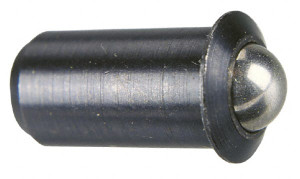

Gibraltar 1.1" Body Length x 1/2" Body Diam, 8 Lb Init to 18 Lb Final End Force, Stainless Steel Press Fit Ball Plunger 7/16" Ball Diam, 0.161" Max Ball Reach, 0.11" Flange Thickness SSWPF10-8B-G - 59590760

Gibraltar 1.1" Body Length x 1/2" Body Diam, 8 Lb Init to 18 Lb Final End Force, Stainless Steel Press Fit Ball Plunger 7/16" Ball Diam, 0.161" Max Ball Reach, 0.11" Flange Thickness SSWPF10-8B-G - 59590760

Brand:   Gibraltar Products
SKU:
59590760
ID:
446207
UPC:
643768237914
callling
$5.34
Current Stock:
Adding to cart… The item has been added

Gibraltar Products

Gibraltar 1.1" Body Length x 1/2" Body Diam, 8 Lb Init to 18 Lb Final End Force, Stainless Steel Press Fit Ball Plunger 7/16" Ball Diam, 0.161" Max Ball Reach, 0.11" Flange Thickness

Manufacturer Part #: SSWPF10-8B-G

S/N: 59590760

UNSPSC: 31162900

UPC: 643768237914

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Body Diameter (Decimal Inch)0.5000
Body Length (Decimal Inch)1.1000
Body MaterialStainless Steel
Ball MaterialStainless Steel
Ball Diameter (Decimal Inch)0.1560
Maximum Ball Reach (Decimal Inch)0.1610
Initial End Force (Lb.)8.00
Final End Force (Lb.)18.00
FlangeYes
Length Under Flange (Decimal Inch)1.1000
Flange Thickness (Decimal Inch)0.1100
Flange Diameter (Decimal Inch)0.6880
FinishPassivate
Locking ElementNo
Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
