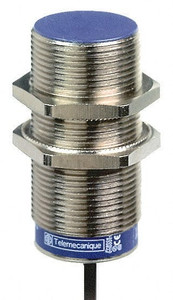

Telemecanique Sensors PNP, NC, 15mm Detection, Cylinder Shielded, Inductive Proximity Sensor 3 Wires, IP68, IP69K, 12 to 48 VDC, M30x1.5 Thread, 2.44 Inch Long XS630B1PBL2 - 59758151
Brand: Telemecanique Sensors- SKU:
- 59758151
- ID:
- 593854
$176.55
Telemecanique Sensors PNP, NC, 15mm Detection, Cylinder Shielded, Inductive Proximity Sensor 3 Wires, IP68, IP69K, 12 to 48 VDC, M30x1.5 Thread, 2.44 Inch Long
Manufacturer Part #: XS630B1PBL2
S/N: 59758151
UNSPSC: 39122230
UPC: 785901521204
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Sensor Type | Inductive |
| Body Shape | Cylinder Shielded |
| Sensor Operation Output Mode | NC |
| Output Type | PNP |
| Connector Type | Cable |
| Detection Distance (mm) | 15.00 |
| Detection Distance (Decimal Inch) | 0.5900 |
| Maximum Voltage | 12 - 48V DC |
| Overall Length (Decimal Inch) | 2.4400 |
| Overall Length (mm) | 62.00 |
| Sensor Head Size | M30 |
| Ingress Protection Rating | IP68, IP69K |
| Maximum Load Capacity (mA) | 200 |
| Thread Size | M30x1.5 |
| Housing Material | Brass |
| Resistance Features | Shock-Resistant, Vibration-Resistant |
| Minimum Operating Temperature | -13F |
| Maximum Operating Temperature | 158F |
| Standards | CE Listed, CSA Certified, DIN 40050, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, RoHS Compliant, UL Listed |
| Number Of Wires | 3 |
| Response Frequency (Hz) | 500 |
