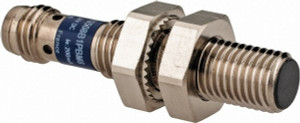

Telemecanique Sensors PNP, NC, 1.5mm Detection, Cylinder Shielded, Inductive Proximity Sensor 3 Wires, IP67, 12 to 24 VDC, M8x1 Thread, 42mm Long x 0.39 Inch Wide XS508B1PBM8 - 59758490
Brand: Telemecanique Sensors- SKU:
- 59758490
- ID:
- 593859
$156.66
Telemecanique Sensors PNP, NC, 1.5mm Detection, Cylinder Shielded, Inductive Proximity Sensor 3 Wires, IP67, 12 to 24 VDC, M8x1 Thread, 42mm Long x 0.39 Inch Wide
Manufacturer Part #: XS508B1PBM8
S/N: 59758490
UNSPSC: 39122230
UPC: 785901931324
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Sensor Type | Inductive |
| Body Shape | Cylinder Shielded |
| Sensor Operation Output Mode | NC |
| Output Type | PNP |
| Connector Type | Three-Pin, M8 |
| Detection Distance (mm) | 1.50 |
| Detection Distance (Decimal Inch) | 0.0600 |
| Maximum Voltage | 12 - 24V DC |
| Overall Length (mm) | 42.00 |
| Overall Width (mm) | 10.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.3900 |
| Sensor Head Size | M8 |
| Ingress Protection Rating | IP67 |
| Maximum Load Capacity (mA) | 200 |
| Overall Width/Diameter (mm) | 10 |
| Thread Size | M8x1 |
| Housing Material | Stainless Steel |
| Resistance Features | Shock-Resistant, Vibration-Resistant |
| Minimum Operating Temperature | -13F |
| Maximum Operating Temperature | 158F |
| Standards | CE Listed, CSA Certified, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, RoHS Compliant, UL Listed |
| Number Of Wires | 3 |
| Response Frequency (Hz) | 5000 |
