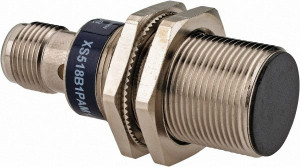

Telemecanique Sensors PNP, 5mm Detection, Cylinder Shielded, Inductive Proximity Sensor 3 Wires, IP67, IP69K, 12 to 24 VDC, M18x1 Thread, 50mm Long x 0.71 Inch Wide XS518B1PAM12 - 59758656
Brand: Telemecanique Sensors- SKU:
- 59758656
- ID:
- 593858
$140.88
Telemecanique Sensors PNP, 5mm Detection, Cylinder Shielded, Inductive Proximity Sensor 3 Wires, IP67, IP69K, 12 to 24 VDC, M18x1 Thread, 50mm Long x 0.71 Inch Wide
Manufacturer Part #: XS518B1PAM12
S/N: 59758656
UNSPSC: 39122230
UPC: 785901448709
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Sensor Type | Inductive |
| Body Shape | Cylinder Shielded |
| Sensor Operation Output Mode | NO |
| Output Type | PNP |
| Connector Type | Four-Pin, M12 |
| Detection Distance (mm) | 5.00 |
| Detection Distance (Decimal Inch) | 0.2000 |
| Maximum Voltage | 12 - 24V DC |
| Overall Length (mm) | 50.00 |
| Overall Width (mm) | 18.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.7100 |
| Sensor Head Size | M18 |
| Ingress Protection Rating | IP67, IP69K |
| Maximum Load Capacity (mA) | 200 |
| Overall Width/Diameter (mm) | 18 |
| Thread Size | M18x1 |
| Housing Material | Brass |
| Resistance Features | Shock-Resistant, Vibration-Resistant |
| Minimum Operating Temperature | -13F |
| Maximum Operating Temperature | 158F |
| Standards | CE Listed, CSA Certified, DIN 40050, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, RoHS Compliant, UL Listed |
| Number Of Wires | 3 |
| Response Frequency (Hz) | 2000 |
