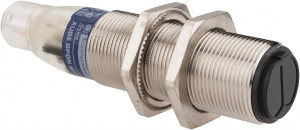

Telemecanique Sensors 4 Pin M12 Connector, 0.6m Nominal Distance, Shock and Vibration Resistant, Diffused Photoelectric Sensor 12 to 24 VDC, 500 Hz, Nickel Plated Brass, 2.99 Inch Long x 0.71 Inch Wide XUB5BPBNM12 - 59759381
Brand: Telemecanique Sensors- SKU:
- 59759381
- ID:
- 593726
$119.88
Telemecanique Sensors 4 Pin M12 Connector, 0.6m Nominal Distance, Shock and Vibration Resistant, Diffused Photoelectric Sensor 12 to 24 VDC, 500 Hz, Nickel Plated Brass, 2.99 Inch Long x 0.71 Inch Wide
Manufacturer Part #: XUB5BPBNM12
S/N: 59759381
UNSPSC: 39121528
UPC: 785901466338
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Sensor Type | Diffused |
| Output Circuit Type | PNP |
| Maximum Nominal Sensing Distance | 0.60m |
| Connector Type | Four-Pin, M12 |
| Frequency | 500Hz |
| Ingress Protection Rating | IP65, IP67, IP69K |
| Housing Material | Nickel-Plated Brass |
| Resistance Features | Shock-Resistant, Vibration-Resistant |
| Overall Length | 2.9900in, 76mm |
| Overall Width | 0.7100in, 18mm |
| Body Shape | Cylindrical |
| Minimum Operating Temperature | -13.0 F |
| Maximum Operating Temperature | 131.0 F |
| Standards | CE Listed, CSA Certified, DIN 40050, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, RoHS Compliant, UL Listed |
| Nema Rating | 4X |
