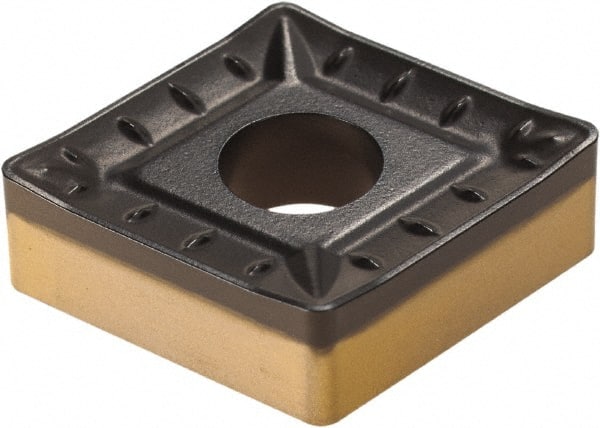

Iscar CNMM 432-NM Carbide Turning Insert TiCN/Al2O3/TiN Finish, 12.9mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond, Series Isoturn 5550267 - 59809897
Brand: Iscar- SKU:
- 59809897
- ID:
- 670314
$21.52
Iscar CNMM 432-NM Carbide Turning Insert TiCN/Al2O3/TiN Finish, 12.9mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond, Series Isoturn
Manufacturer Part #: 5550267
S/N: 59809897
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMM |
| Corner Radius (mm) | 0.03 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Manufacturer Grade | IC8250 |
| Coating/Finish | TiCN, Al2O3, TiN |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Insert Length (mm) | 12.90 |
| Insert Length (Decimal Inch) | 0.5079 |
| Primary Workpiece Material | Stainless Steel, Steel |
| Primary Workpiece Material Code | M, P |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | NM |
| Insert Size Code | 432 |
