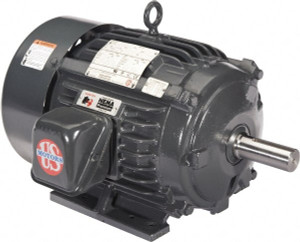

U.S. Motors 7-1/2 hp, TEFC Enclosure, No Thermal Protection, 3535, 2910 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 213 Frame, Horizontal-Footed Mount, 1 Speed, Double Shielded Ball Bearings H7P1D - 59897363
Brand: U.S. Motors- SKU:
- 59897363
- ID:
- 573869
$1,566.11
U.S. Motors 7-1/2 hp, TEFC Enclosure, No Thermal Protection, 3535, 2910 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 213 Frame, Horizontal-Footed Mount, 1 Speed, Double Shielded Ball Bearings, 19.9-17.8/8.9 Full Load Amps, F Class Insulation
Manufacturer Part #: H7P1D
S/N: 59897363
UNSPSC: 26100000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Motor Type | Three Phase Premium Efficient |
| Phase | 3 |
| Enclosure Style | TEFC |
| Horsepower | 7-1/2 |
| Name Plate RPMs | 3535 |
| 2910 | |
| Voltage | 208 to 230, 460, 190, 380V |
| Frequency (Hz - 0 Decimals) | 60 |
| 50 | |
| Frame Size | 213 |
| Mount Style | Horizontal-Footed |
| Mount Type | Horizontal-Footed |
| Bearing Type | Double Shielded Ball |
| Number Of Phases | 1 |
| Full Load Amperage | 19.9 to 17.8/8.9 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Service Factor Rating | 1.00 |
| Motor Rotation | Dual |
| Applications | General Equipment, Harsh Environment |
| Thermal Protection | None |
| Number Of Speeds | 1 |
| Type | TEFC |
| Product Service Code | 6105 |
