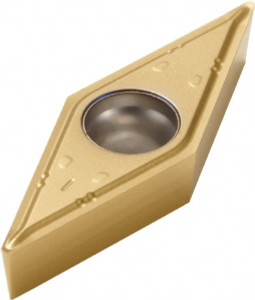

Seco Tools VBMT 221-F1 CP500 Carbide Turning Insert TiAlN/TiN Finish, 1/4" Inscribed Circle, 1/64" Corner Radius, 35° Diamond 02620529 - 60175536
Brand: Seco Tools- SKU:
- 60175536
- ID:
- 676576
$30.52
Seco Tools VBMT 221-F1 CP500 Carbide Turning Insert TiAlN/TiN Finish, 1/4" Inscribed Circle, 1/64" Corner Radius, 35° Diamond
Manufacturer Part #: 02620529
S/N: 60175536
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 5 |
| Insert Style | VBMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35degree |
| Manufacturer Grade | CP500 |
| Coating/Finish | TiAlN, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Series | VBMT-F1 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Carbide |
| Insert Shape | Diamond 35 |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.4134 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4in |
| Clearance Code | B |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.8716 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Steel, Cast Iron, Super-alloys & Titanium |
| Secondary Workpiece Material Code | P, K, S |
| Iso Code | VBMT110304-F1 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 02620529 |
| Material Grade | M10, M20, M30 |
| Proprietary Coating Designation | Multilayer Coating |
| Lead Angle | 35degree |
| Coating Classification | PVD |
| Chip Breaker | F1 |
| Cutting Edge Style | Sharp |
| Industry Standard Number | VBMT221-F1 |
| Width (Decimal Inch - 4 Decimals) | 0.2500in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Turning, Facing, Profiling, Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 221 |
