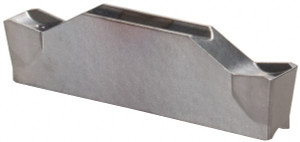

Ingersoll Cutting Tools TDC3 TT8020 Carbide Cutoff Insert Uncoated, 0° Neutral Lead Angle, 3mm Cutting Width, 0.2mm Corner Radius 6000200 - 60343969
Brand: Ingersoll Cutting Tools- SKU:
- 60343969
- ID:
- 646621
$41.70
Ingersoll Cutting Tools TDC3 TT8020 Carbide Cutoff Insert Uncoated, 0° Neutral Lead Angle, 3mm Cutting Width, 0.2mm Corner Radius
Manufacturer Part #: 6000200
S/N: 60343969
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | TDC |
| Insert Size Code | 3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT8020 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.000 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Chipbreaker | C |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving, Parting |
| Series | TDC |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7900 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Primary Workpiece Material Code | P, M |
| Ansi Code | TDC3 |
| Iso Code | TDC3 |
| Cutting Height (mm) | 4.70 |
| Cutting Height (Decimal Inch) | 0.1850 |
| Material Grade | C1, C2, C3, C4, C5, C6 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Insert Seat Size | 3 |
| Full Radius | No |
| Cutting Direction | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Insert Height (Decimal Inch) | 0.1850 |
| Coating Classification | PVD |
| Coating/Finish | TiCN |
| Single Or Double End | Double |
