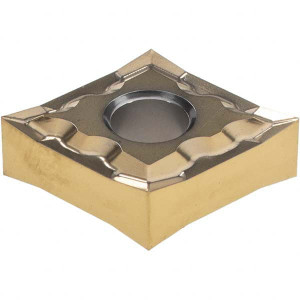

Ingersoll Cutting Tools CNGG430ML TT5080 Carbide Turning Insert 1/2" Inscribed Circle, 3/16" Thick, 80° Diamond 5523116 - 60705969
Brand: Ingersoll Cutting Tools- SKU:
- 60705969
- ID:
- 669873
$27.02
Ingersoll Cutting Tools CNGG430ML TT5080 Carbide Turning Insert 1/2" Inscribed Circle, 3/16" Thick, 80° Diamond
Manufacturer Part #: 5523116
S/N: 60705969
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNGG |
| Corner Radius (Decimal Inch) | 0.0040 |
| Included Angle | 80.0 |
| Manufacturer Grade | TT5080 |
| Coating/Finish | AlTiN, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Series | CNGG |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1 |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5080 |
| Primary Workpiece Material | Stainless Steel, Super-alloys & Titanium |
| Primary Workpiece Material Code | M, S |
| Ansi Code | CNGG430MLTT5080 |
| Iso Code | CNGG120401ML TT5080 |
| Standards | ISO |
| Chip Breaker | ML |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Insert Size Code | 430 |
