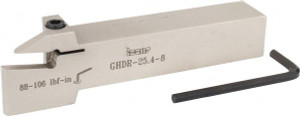

Iscar 1" Max Depth, 0.26" to 0.327" Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 1" x 1" Shank, Uses GI.., GPV.., TIP.. Inserts, GHD Toolholder, Series Cut Grip 2800162 - 60784485
Brand: Iscar- SKU:
- 60784485
- ID:
- 685887
$335.05
Iscar 1" Max Depth, 0.26" to 0.327" Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 1" x 1" Shank, Uses GI.., GPV.., TIP.. Inserts, GHD Toolholder, Series Cut Grip
Manufacturer Part #: 2800162
S/N: 60784485
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Maximum Groove Width (Decimal Inch) | 0.3270 |
| Minimum Groove Width (Decimal Inch) | 0.2600 |
| Toolholder Style | GHD |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | GDMF, GDMM-CC, GDMN, GDMU, GDMY, GDMY (Full Radius), GDMY-F, GIA-K (Long Pocket), GIF (Long Pocket), GIF-E, GIPA/GIDA 8 (Full Radius) |
| Insert Compatibility | GI.., GPV.., TIP.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 6.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Series | Cut Grip |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Tool Application | Cut-Off, Grooving |
| Full Radius Insert | No |
| Head Length (Decimal Inch) | 1.5800 |
| Standards | ISO 13399 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
