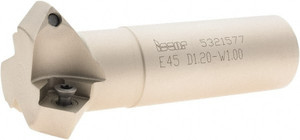

Iscar 45° Lead Angle, 1.2" to 1.815" Cut Diam, 1" Shank Diam, Indexable & Chamfer End Mill Takes 3 Inserts, SCMT-19, SCMW, SDMT-AD-N, TPMT Insert Style, E45 Toolholder, 3-3/4" OAL, 0.31" Max Depth of Cut 3110005 - 60840220
Brand: Iscar- SKU:
- 60840220
- ID:
- 679853
$508.45
Iscar 45° Lead Angle, 1.2" to 1.815" Cut Diam, 1" Shank Diam, Indexable & Chamfer End Mill Takes 3 Inserts, SCMT-19, SCMW, SDMT-AD-N, TPMT Insert Style, E45 Toolholder, 3-3/4" OAL, 0.31" Max Depth of Cut
Manufacturer Part #: 3110005
S/N: 60840220
UNSPSC: 23291600
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Cutting Diameter (Decimal Inch) | 1.2000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.8150 |
| Maximum Depth of Cut (Decimal Inch) | 0.3100 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number Of Cutter Inserts | 3 |
| Insert Style | SCMT-19, SCMW, SDMT-AD-N, TPMT |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.7500 |
| Series | IscarMill |
| Toolholder Style | E45 |
| Functional Length (Decimal Inch) | 1.3800 |
| Maximum Body Diameter (Decimal Inch) | 1.0000 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Head Length (Decimal Inch) | 1.3800 |
| Shank Length (Decimal Inch) | 2.3700 |
| Complete Insert Compatibility | SCMT 3-2-19, SCMT 432-19, SCMW 3-1, SCMW 432, SDMT 32AD-N, TPMT 2-0, TPMT 2-1, TPMT 2-2, TPMT 321, TPMT 322 |
| Number Of Flutes | 3 |
| Coolant Through | No |
| Shank Type | Weldon Flat |
