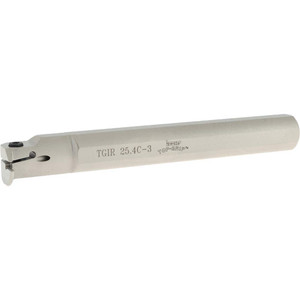

Iscar 0.31" Max Depth, 0.118" to 0.118" Width, Internal Right Hand Indexable Grooving Toolholder 7.85" OAL, 1" Shank, Uses TGMF Inserts, TGI Toolholder, Through Coolant, Series Top Grip 2850058 - 60879327
Brand: Iscar- SKU:
- 60879327
- ID:
- 685563
$659.87
Iscar 0.31" Max Depth, 0.118" to 0.118" Width, Internal Right Hand Indexable Grooving Toolholder 7.85" OAL, 1" Shank, Uses TGMF Inserts, TGI Toolholder, Through Coolant, Series Top Grip
Manufacturer Part #: 2850058
S/N: 60879327
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | Internal |
| Toolholder Type | Non-Face Grooving |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3100 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | TGI |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Insert Holding Method | Clamp |
| Insert Compatibility | TGMF |
| Compatible Insert Size Code | TGMA, TGMF, TGMF/P |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Series | Top Grip |
| Shank Length (Decimal Inch) | 6.2800 |
| Overall Length (Decimal Inch) | 7.8500 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.7400 |
| Minimum Hole Diameter (Decimal Inch) | 1.2600 |
| Head Length (Decimal Inch) | 1.5700 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Standards | ISO 13399 |
| Complete Insert Compatibility | TGMF 3.. |
| Coolant Through | Yes |
