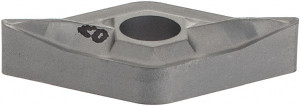

Iscar DNMS 432-12 IC-20 Carbide Turning Insert Uncoated, 15.5mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 55° Diamond 5500519 - 60887619
Brand: Iscar- SKU:
- 60887619
- ID:
- 670333
$19.35
Iscar DNMS 432-12 IC-20 Carbide Turning Insert Uncoated, 15.5mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 55° Diamond
Manufacturer Part #: 5500519
S/N: 60887619
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | DNMS |
| Corner Radius (mm) | 0.03 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55.0 |
| Manufacturer Grade | IC20 |
| Coating/Finish | Uncoated |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Positive |
| Insert Length (mm) | 15.50 |
| Insert Length (Decimal Inch) | 0.6102 |
| Primary Workpiece Material | K, M, N |
| Primary Workpiece Material Code | H, K, M, N, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Material Grade | C2, C3 |
| Chip Breaker | 12 |
| Insert Size Code | 432 |
