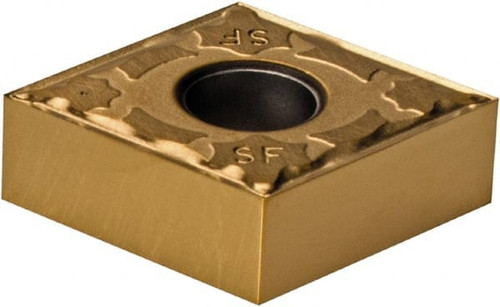

Iscar CNGG 430-SF IC507 Carbide Turning Insert TiN/TiCN Finish, 12.9mm Long, 1/2" Inscribed Circle, 0.004" Corner Radius, 3/16" Thick, 80° Diamond, Series Isoturn 5504540 - 60895588
Brand: Iscar- SKU:
- 60895588
- ID:
- 670340
$29.90
Iscar CNGG 430-SF IC507 Carbide Turning Insert TiN/TiCN Finish, 12.9mm Long, 1/2" Inscribed Circle, 0.004" Corner Radius, 3/16" Thick, 80° Diamond, Series Isoturn
Manufacturer Part #: 5504540
S/N: 60895588
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNGG |
| Corner Radius (Decimal Inch) | 0.0040 |
| Included Angle | 80.0 |
| Manufacturer Grade | IC507 |
| Coating/Finish | TiN, TiCN |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Insert Length (mm) | 12.90 |
| Insert Length (Decimal Inch) | 0.5080 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, M, P, S |
| Iso Code | CNGG 430-SF |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | CNGG 430-SF |
| Material Grade | Submicron |
| Chip Breaker | SF |
| Multi-Use Tool | Yes |
| Insert Size Code | 430 |
