Iscar RH SRGC 0° Neutral Rake Indexable Turning Toolholder 1" x 1" Shank, Takes RC.T 10T3 Inserts 3600954 - 60923984
Brand: Iscar- SKU:
- 60923984
- ID:
- 686630
$219.20

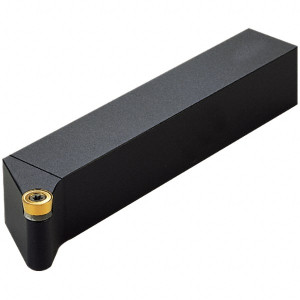

Iscar RH SRGC 0° Neutral Rake Indexable Turning Toolholder 1" x 1" Shank, Takes RC.T 10T3 Inserts
Manufacturer Part #: 3600954
S/N: 60923984
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Toolholder Style | SRGC |
| Hand of Holder | Right Hand |
| Insert Compatibility | RC.T 10T3 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 6.0000 |
| Coolant Through | No |
| Rake | Neutral |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | RCMT10T3M0-14 |
| Rake Angle | 0 |
| Multi-use Tool | Yes |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Isoturn |
| Cutting Tool Application | Facing |
| Head Length (Decimal Inch) | 0.7500 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Standards | ISO 13399 |
