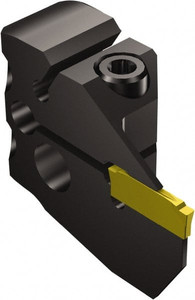

Sandvik Coromant Size 32, 18mm Head Length, 46.1mm Ctr to Cutting Edge, Left Hand Modular Grooving Blade Holder Head 3.96 to 23mm Groove Width, Uses N123H2-0400-GM Inserts, Through Coolant, Series CoroCut 1-2 5764574 - 61167888
Brand: Sandvik Coromant- SKU:
- 61167888
- ID:
- 686187
$301.67
Sandvik Coromant Size 32, 18mm Head Length, 46.1mm Ctr to Cutting Edge, Left Hand Modular Grooving Blade Holder Head 3.96 to 23mm Groove Width, Uses N123H2-0400-GM Inserts, Through Coolant, Series CoroCut 1-2
Manufacturer Part #: 5764574
S/N: 61167888
UNSPSC: 23242100
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| System Size | 32 |
| Maximum Depth of Cut (Decimal Inch) | 127.0000 |
| Maximum Depth of Cut (mm) | 5.00 |
| Minimum Groove Width (Decimal Inch) | 100.5840 |
| Minimum Groove Width (mm) | 3.96 |
| Maximum Groove Width (Decimal Inch) | 0.9055 |
| Maximum Groove Width (mm) | 23.00 |
| Cutting Direction | Left Hand |
| Modular Head Style | Cutting Head |
| Compatible Insert Style | N123 |
| Compatible Insert Size Code | H |
| Series | CoroCut 1-2 |
| Center to Cutting Edge (mm) | 46.10 |
| Center to Cutting Edge (Decimal Inch) | 1.8150 |
| Complete Insert Compatibility | N123H2-0400-GM |
| Head Length Projection (Decimal Inch) | 0.7087 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 18.00 |
| UNSPSC Code | 27112809 |
