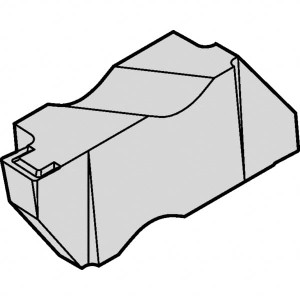

Kennametal NG2M220LK KCP25B Carbide Grooving Insert TiOCN Finish, LH, 2.2mm Cutting Width, 2.79mm Max Depth, Series Top Notch 5968013 - 61267704
Brand: Kennametal- SKU:
- 61267704
- ID:
- 650649
$41.24
Kennametal NG2M220LK KCP25B Carbide Grooving Insert TiOCN Finish, LH, 2.2mm Cutting Width, 2.79mm Max Depth, Series Top Notch
Manufacturer Part #: 5968013
S/N: 61267704
UNSPSC: 23242105
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Insert Style | NG |
| Cutting Width (Decimal Inch) | 0.0866 |
| Cutting Width (mm) | 2.20 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (mm) | 2.79 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCP25B |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0075 |
| Corner Radius (mm) | 0.19 |
| Rake | Positive |
| Insert Holding Method | Clamp |
| Insert Size | 2 |
| Cutting Height (mm) | 5.56 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1000 to 0.1500 |
| Cutting Height (Decimal Inch) | 0.2190 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Lead Angle | 1 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | CVD |
| Rake Angle | 3.00 |
| Maximum Corner Radius (Decimal Inch) | 0.0866 |
| Minimum Corner Radius (Decimal Inch) | 0.0050 |
| Insert Thickness (Decimal Inch) | 0.2190 |
| Chip Breaker | K |
| Insert Seat Size | 2 |
| Gage Diameter (Decimal Inch) | 0.1875 |
| Gage Diameter (Inch) | 3/16 |
| Overall Width (mm) | 3.84 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1510 |
| Coating/Finish | TiOCN |
| Single Or Double End | Double |
