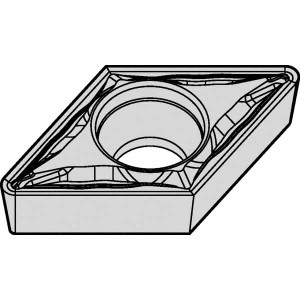

Kennametal DCMT2151FP KCM25B Carbide Turning Insert 1/4" Inscribed Circle, 1/64" Corner Radius, 55° Diamond 5591143 - 61271862
Brand: Kennametal- SKU:
- 61271862
- ID:
- 673353
$30.35
Kennametal DCMT2151FP KCM25B Carbide Turning Insert 1/4" Inscribed Circle, 1/64" Corner Radius, 55° Diamond
Manufacturer Part #: 5591143
S/N: 61271862
UNSPSC: 23242105
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 55degree |
| Manufacturer Grade | KCM25B |
| Coating/Finish | TiCN, Al2O3, TiOCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | Screw-On |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Carbide |
| Insert Shape | Diamond 55 |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.2033 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4in |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | MTCVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6104 |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 5591143 |
| Material Grade | C1, C2 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | FP |
| Rake Angle | 15 |
| Cutting Edge Style | Honed |
| Industry Standard Number | DCMT2151FP |
| Width (Decimal Inch - 4 Decimals) | 0.2500in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring, Back Turning, Back Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2151 |
