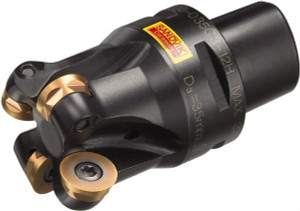

Sandvik Coromant 39.3mm Cut Diam, 1-31/32" Arbor Hole Diam, 6.3mm Max Depth, Indexable Square-Shoulder Face Mill Takes 3 Inserts, 0° Lead Angle, 2" High, R300-1340 Insert Style, Through Coolant, Series CoroMill 300 5738759 - 61442489
Brand: Sandvik Coromant- SKU:
- 61442489
- ID:
- 680844
$1,213.40
Sandvik Coromant 39.3mm Cut Diam, 1-31/32" Arbor Hole Diam, 6.3mm Max Depth, Indexable Square-Shoulder Face Mill Takes 3 Inserts, 0° Lead Angle, 2" High, R300-1340 Insert Style, Through Coolant, Series CoroMill 300
Manufacturer Part #: 5738759
S/N: 61442489
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Maximum Cutting Diameter (Decimal Inch) | 1.5472 |
| Maximum Cutting Diameter (mm) | 39.30 |
| Maximum Depth of Cut (mm) | 6.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.2480 |
| Arbor Hole Diameter (mm) | 50.00 |
| Arbor Hole Diameter (Inch) | 1-31/32 |
| Arbor Hole Diameter (Decimal Inch) | 1.9685 |
| Compatible Insert Size Code | R300-1340.. |
| Cutter Style | RA300 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp, Screw |
| Lead Angle | 0 |
| Rake | Positive |
| Series | CoroMill 300 |
| Maximum Body Diameter (Decimal Inch) | 1.5472 |
| Overall Height (Mm - 5 Decimals) | 50.80 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Hub Diameter (mm) | 50.00 |
| Hub Diameter (Decimal Inch) | 1.9685 |
| Pitch Type | Coarse |
| Cutting Edge Length (Decimal Inch) | 0.2480 |
| Complete Insert Compatibility | R300-1340.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
