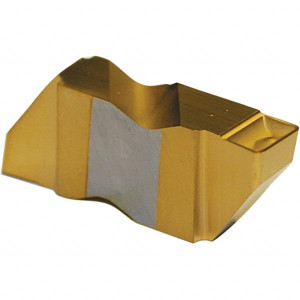

Tool-Flo FLG3031R-CB GP3R Carbide Grooving Insert TiN Finish, RH, 0.79mm Cutting Width, 1.27mm Max Depth, Series Flo-Lock 563631PRJ5R - 61734851
Brand: Tool-Flo- SKU:
- 61734851
- ID:
- 652028
$30.03
Tool-Flo FLG3031R-CB GP3R Carbide Grooving Insert TiN Finish, RH, 0.79mm Cutting Width, 1.27mm Max Depth, Series Flo-Lock
Manufacturer Part #: 563631PRJ5R
S/N: 61734851
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | FLG |
| Insert Size Code | 3031CB |
| Cutting Width (Decimal Inch) | 0.0310 |
| Cutting Width (mm) | 0.79 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Maximum Depth of Cut (mm) | 1.27 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | GP3 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0020 to 0.0050 |
| Insert Holding Method | Clamp |
| Insert Size | 3031 |
| Material Grade | Micrograin |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Lead Angle | 3 |
| Multi-use Tool | No |
| Series | Flo-Lock |
| Coating Process | PVD |
| Iso Code | FLG3031R-CB |
| Maximum Corner Radius (Decimal Inch) | 0.0050 |
| Minimum Corner Radius (Decimal Inch) | 0.0020 |
| Manufacturers Catalog Number | FLG-3031R-CB |
| Insert Thickness (Decimal Inch) | 0.1950 |
| Chip Breaker | CB |
| Gage Diameter (Decimal Inch) | 0.3750 |
| Coating/Finish | TiN |
| Single Or Double End | Double |
