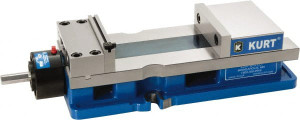

Kurt 6" Jaw Width, 9" Jaw Opening Capacity, Horizontal Stationary Machine Vise Reverse Hydraulic Operation, 1 Station, 20.553" Long x 4.86" High x 1-47/64" Deep, 1.735" Jaw Height, 5,250 Lb Max Clamp Force, Ductile Iron HDH691 - 61764213
Brand: Kurt Manufacturing Workholding Solutions- SKU:
- 61764213
- ID:
- 451645
$3,247.94
Kurt 6" Jaw Width, 9" Jaw Opening Capacity, Horizontal Stationary Machine Vise Reverse Hydraulic Operation, 1 Station, 20.553" Long x 4.86" High x 1-47/64" Deep, 1.735" Jaw Height, 5,250 Lb Max Clamp Force, Ductile Iron
Manufacturer Part #: HDH691
S/N: 61764213
UNSPSC: 23153000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Jaw Width (Decimal Inch) | 6.00 |
| Jaw Height (Decimal Inch) | 1.7350 |
| Throat Depth (Inch) | 1-47/64 |
| Operation Type | Reverse Hydraulic |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Base Width (Inch) | 6.0000 |
| Overall Length (Decimal Inch) | 20.5530 |
| Overall Height (Decimal Inch) | 4.8600 |
| Vise Material | Ductile Iron |
| Maximum Clamping Force (Ft/Lb) | 5250.00 |
| Features | Less Deflection, Narrower Body, Quick Change Movable Jaw, Sine Key, Stable Stationary Jaw, St&ard Jaw Plate, Taller Body |
| Includes | Groove Lock Workstop |
| Precision | Yes |
