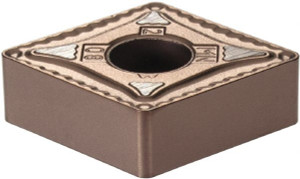

Kennametal CNMG432MN KCP25B Carbide Turning Insert TiCN/Al2O3/TiOCN Finish, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond, Series Kenloc 5387662 - 61792370
Brand: Kennametal- SKU:
- 61792370
- ID:
- 672295
$29.42
Kennametal CNMG432MN KCP25B Carbide Turning Insert TiCN/Al2O3/TiOCN Finish, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond, Series Kenloc
Manufacturer Part #: 5387662
S/N: 61792370
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80 |
| Manufacturer Grade | KCP25B |
| Coating/Finish | TiCN, Al2O3, TiOCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | KENLOC |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (mm) | 5.08 |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Insert Holding Method | Clamp, Pin |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | MTCVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5077 |
| Primary Workpiece Material | Steel, Cast Iron |
| Primary Workpiece Material Code | P, K |
| Iso Code | CNMG120408MN |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 5387662 |
| Material Grade | C2, C3, C6, C7 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | MN |
| Rake Angle | 0 |
| Cutting Edge Style | Chamfered & Honed |
| Industry Standard Number | CNMG432MN |
| Width (Decimal Inch - 4 Decimals) | 0.5 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
