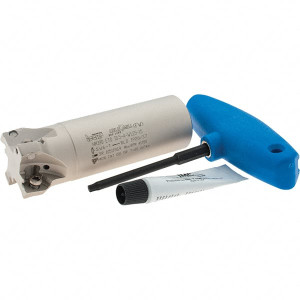

Iscar 1-1/2" Cut Diam, 0.512" Max Depth, 1-1/4" Shank Diam, Weldon Shank, 4" OAL, Indexable Square-Shoulder End Mill HM390 ETD-15 Toolholder, Uses HM390 TDKT 1505 Insert Style, 0° Lead Angle, Through Coolant, Series HeliIQMill 3106802 - 61882320
Brand: Iscar- SKU:
- 61882320
- ID:
- 680153
$739.01
Iscar 1-1/2" Cut Diam, 0.512" Max Depth, 1-1/4" Shank Diam, Weldon Shank, 4" OAL, Indexable Square-Shoulder End Mill HM390 ETD-15 Toolholder, Uses HM390 TDKT 1505 Insert Style, 0° Lead Angle, Through Coolant, Series HeliIQMill
Manufacturer Part #: 3106802
S/N: 61882320
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Cutting Diameter | 1.5000in | |||
| Cutting Diameter | 1-1/2 | |||
| Overall Length (Decimal Inch) | 4.0000 | |||
| Overall Length (Inch) | 4 | |||
| Maximum Depth of Cut (Decimal Inch) | 0.5120 | |||
| Cutter Style | HM390 ETD-15 | |||
| Shank Type | Weldon Flat | |||
| Shank Diameter (Decimal Inch) | 1.2500 | |||
| Shank Diameter (Inch) | 1-1/4 | |||
| Insert Holding Method | Screw | |||
| Maximum Ramping Angle | 2.1 | |||
| Series | HeliIQMill | |||
| Flute Type | Helical | |||
| Lead Angle | 0 | |||
| Shank Length (Decimal Inch) | 2.8200 | |||
| Head Length (Decimal Inch) | 1.18 | |||
| Tool Application | Milling | |||
| Standards | AS 9100, ISO 14001 | 2004, ISO 50001, ISO 9001 | 2008, OSHAS18001 | 2007 |
| Insert Compatibility | HM390 TDKT 1505.. | |||
| UNSPSC Code | 27112803 | |||
| Number Of Cutter Inserts | 4 | |||
| Coolant Through | Yes |
