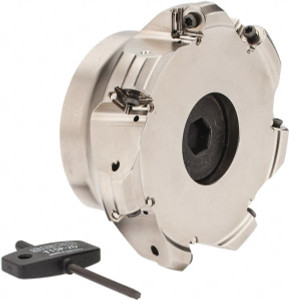

Seco Tools 3.94" Cut Diam, 1-1/2" Arbor Hole, 0.118" Max Depth of Cut, 40° Indexable Chamfer & Angle Face Mill Takes 7 Inserts, ON.U 05 Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series Double Octo 05 02810103 - 61982583
Brand: Seco Tools- SKU:
- 61982583
- ID:
- 680559
$2,095.27
Seco Tools 3.94" Cut Diam, 1-1/2" Arbor Hole, 0.118" Max Depth of Cut, 40° Indexable Chamfer & Angle Face Mill Takes 7 Inserts, ON.U 05 Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series Double Octo 05
Manufacturer Part #: 02810103
S/N: 61982583
UNSPSC: 23291600
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Cutting Diameter (Decimal Inch) | 3.9400 |
| Maximum Cutting Diameter (Decimal Inch) | 4.2700 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Compatible Insert Size Code | ON.U 05 |
| Cutter Style | R220.48 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Rake Angle | -8 |
| Series | Double Octo 05 |
| Keyway Width (Decimal Inch) | 0.6300 |
| Overall Height (Decimal Inch) | 1.9690 |
| Maximum Body Diameter (Decimal Inch) | 4.2700 |
| Pitch Type | Normal |
| Maximum RPM | 10200 |
| Counterbore Diameter (Decimal Inch) | 0.6300 |
| Complete Insert Compatibility | ONEU 05, ONMU 05 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | R220.48-04.00-05-07SA |
| Number Of Cutter Inserts | 7 |
| Coolant Through | Yes |
| Number Of Flutes | 7 |
