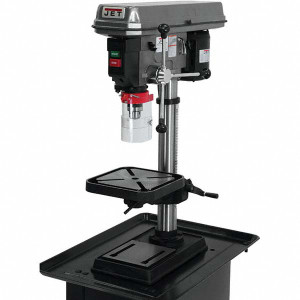

Jet Floor Drill Press: 15" Swing, 3/4 hp, 115V, 1 Phase, Belt 16 Speed, 3-1/8" Spindle Travel, 11-1/2" Table Length, 11-1/2" Table Width 354401 - 62112008
Brand: Jet- SKU:
- 62112008
- ID:
- 872763
$1,130.82
Jet Floor Drill Press: 15" Swing, 3/4 hp, 115V, 1 Phase, Belt 16 Speed, 3-1/8" Spindle Travel, 11-1/2" Table Length, 11-1/2" Table Width
Manufacturer Part #: 354401
S/N: 62112008
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drive Type | Belt |
| Swing Distance | 15in |
| Swing Distance (Decimal Inch) | 15.0000 |
| Swing Distance (Inch) | 15 |
| Spindle Speed Control | Step Pulley |
| Phase | 1 |
| Spindle Taper Size | 2MT |
| Minimum Spindle Speed | 200RPM |
| Maximum Spindle Speed | 3630RPM |
| Minimum Spindle Speed (RPM) | 200 |
| Maximum Spindle Speed (RPM) | 3630 |
| Number of Spindle Speeds | 16 |
| Number Of Spindle Speeds | 16 |
| Spindle to Column Distance (Inch) | 7-1/2 |
| Spindle to Table Distance (Inch) | 15-1/2 |
| Spindle Travel Length | 3.375in |
| Spindle Travel Length (Decimal Inch) | 3.3750 |
| Spindle Travel Length (Inch) | 3-1/8 |
| Column Diameter (Inch) | 2-7/8 |
| Drilling Capacity in Steel (Inch) | 1/2 |
| Drilling Capacity in Cast Iron (Inch) | 5/8 |
| Table Slot Size | 3.625in |
| Table Length (Decimal Inch) | 11.5000 |
| Table Length | 11.5in |
| Table Width | 11.5in |
| Voltage | 115V |
| Base Length | 18in |
| Head Material | Cast Iron |
| Overall Depth (Inch) | 13 |
| Overall Length | 31in |
| Overall Depth | 13in |
