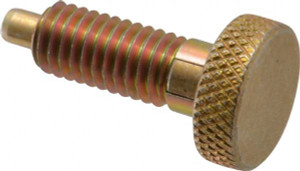

Vlier 3/8-16, 3/4" Thread Length, 0.185 to 0.186" Max Plunger Diam, 0.5 Lb Init to 3 Lb Final End Force, Locking Knob Handle Plunger Knurled Knob, 0.97" Length Under Head/Shoulder, 0.22" Plunger Projection SLF375 - 62124185
Brand: Vlier- SKU:
- 62124185
- ID:
- 447129
$13.33
Vlier 3/8-16, 3/4" Thread Length, 0.185 to 0.186" Max Plunger Diam, 0.5 Lb Init to 3 Lb Final End Force, Locking Knob Handle Plunger Knurled Knob, 0.97" Length Under Head/Shoulder, 0.22" Plunger Projection
Manufacturer Part #: SLF375
S/N: 62124185
UNSPSC: 39121500
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Length (Decimal Inch) | 0.75in |
| Plunger Projection | 0.22in |
| Plunger Length | 1.26in |
| Plunger Type | Locking |
| Initial End Force | 0.5lb |
| Knob Style | Knurled |
| Final End Force | 3lb |
| Thread Size | 3/8-16 in |
| Length Under Head/Shoulder (Decimal Inch) | 0.9700 |
| Plunger Projection (Decimal Inch) | 0.2200 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1860 |
| Initial End Force (Lb.) | 0.50 |
| Final End Force (Lb.) | 3.00 |
| Locking Element | No |
| Minimum Plunger Diameter | 0.185in |
| Maximum Plunger Diameter | 0.186in |
| Material | Steel |
| Finish | Zinc Gold Chromate |
| Plunger Length (Decimal Inch) | 1.2600 |
| Head Diameter (Decimal Inch) | 0.75in |
| Head Height (Decimal Inch) | 0.29in |
