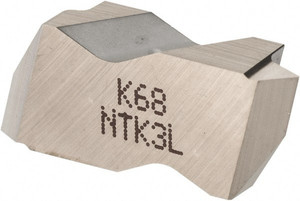

Kennametal NTK3L K68 Carbide Threading Insert Uncoated, Internal/External, Partial Profile 60°, 1-2.5mm, 0.6-2.5mm, Series Top Notch 1114627 - 62154943
Brand: Kennametal- SKU:
- 62154943
- ID:
- 667031
$37.42
Kennametal NTK3L K68 Carbide Threading Insert Uncoated, Internal/External, Partial Profile 60°, 1-2.5mm, 0.6-2.5mm, Series Top Notch
Manufacturer Part #: 1114627
S/N: 62154943
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NTK |
| Insert Material | Carbide |
| Manufacturer Grade | K68 |
| Material Grade | C3 |
| Thread Standard | Partial Profile 60 Degree |
| Insert Hand | Left Hand |
| Internal Pitch | 1.00 to 2.50 mm, 9 to 24 TPI |
| External Pitch | 0.60-2.50 mm, 10-44 TPI |
| Included Angle | 60degree |
| Series | Top Notch |
| Tip to Top of Insert (Decimal Inch) | 0.1409 |
| Tip to Top of Insert (mm) | 3.58 |
| Corner Radius (Decimal Inch) | 0.0031 |
| Corner Radius (mm) | 0.08mm |
| Thickness (mm) | 4.95mm |
| Insert Size | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1949in |
| Finish Coating | Bright/Uncoated |
| Thread Type | Internal, External |
| UNSPSC Code | 23291804 |
