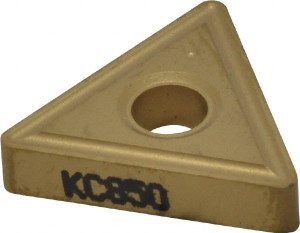

Kennametal TNMG322 KC850 Carbide Turning Insert TiC/TiCN/TiN Finish, Neutral, 16.5mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 60° Triangle, Series KENDEX 1160293 - 62288311
Brand: Kennametal- SKU:
- 62288311
- ID:
- 672369
$23.48
Kennametal TNMG322 KC850 Carbide Turning Insert TiC/TiCN/TiN Finish, Neutral, 16.5mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 60° Triangle, Series KENDEX
Manufacturer Part #: 1160293
S/N: 62288311
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | TNMG322 |
| ISO Insert Code | TNMG160308 |
| Relief Angle | 0 |
| Insert Style | TNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 60 |
| Manufacturer Grade | KC850 |
| Coating/Finish | TiC, TiCN, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | KENLOC |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness, Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness, Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness, Special, Super Alloys (S) - Mod |
| Number Of Cutting Edges | 6 |
| Side Clearance | Negative |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (mm) | 16.50 |
| Insert Length (Decimal Inch) | 0.6496 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Primary Workpiece Material Code | P, M, K, S |
| Secondary Workpiece Material Code | K, M |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 1160293 |
| Material Grade | C5, C6 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | Common |
| Rake Angle | 0 |
| Cutting Edge Style | Chamfered, Honed |
| Industry Standard Number | TNMG322 |
| Width (Decimal Inch - 4 Decimals) | 0.6496 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| ANSI Size Code | 322 |
| ISO Size Code | 160308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 322 |
