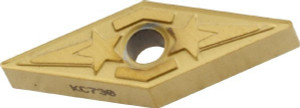

Kennametal VNGG331LF KC730 Carbide Turning Insert TiN Finish, Neutral, 16.61mm Long, 3/8

Kennametal VNGG331LF KC730 Carbide Turning Insert TiN Finish, Neutral, 16.61mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 35° Diamond, Series KENLOC 1160862 - 62288766

Brand:   Kennametal
SKU:
62288766
ID:
672400
callling
$39.43
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal VNGG331LF KC730 Carbide Turning Insert TiN Finish, Neutral, 16.61mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 35° Diamond, Series KENLOC

Manufacturer Part #: 1160862

S/N: 62288766

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

ANSI Insert CodeVNGG331
ISO Insert CodeVNGG160404
Relief Angle0
Insert StyleVNGG
Corner Radius (Inch)1/64
Corner Radius (Decimal Inch)0.0156
Included Angle35
Manufacturer GradeKC730
Coating/FinishTiN
Wiper EdgeNo
Insert HandNeutral
Insert Thickness (Inch)3/16
Insert Thickness (Decimal Inch)0.1875
SeriesKENLOC
Inscribed Circle (Inch)3/8
Inscribed Circle (Decimal Inch)0.3750
Insert MaterialCarbide
Insert ShapeV - Diamond (Rhombic) 35-Deg
Chip Breaker OperationFinishing, Light Machining
Grade CharacteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Number Of Cutting Edges4
Side ClearanceNegative
Insert Shape CodeV
Hole Diameter (Decimal Inch)0.1500
Hole Diameter (Mm) ( - 0 Decimals)3.81
Maximum Depth of Cut (mm)1.25
Maximum Depth of Cut (Decimal Inch)0.0492
Insert Holding MethodClamp, Pin
Width (Inch)3/8
Clearance CodeN
Tolerance CodeG
Coating ProcessPVD
Length Range (Decimal Inch)0.7000 - 10.0000
RakeNegative
Insert Length (mm)16.61
Insert Length (Decimal Inch)1.3076
Primary Workpiece MaterialSteel, Stainless Steel, Superalloys & Titanium
Primary Workpiece Material CodeP, M, K
Secondary Workpiece Material CodeM, S
StandardsANSI, ISO
Manufacturers Catalog Number1160862
Material GradeC2, C3, C4
Proprietary Coating DesignationTiN
Coating ClassificationPVD
Chip BreakerLF
Rake Angle10
Cutting Edge StyleHoned
Industry Standard NumberVNGG331LF
Width (Decimal Inch - 4 Decimals)0.3750
Multi-Use ToolYes
Full RadiusNo
Multi-Use ApplicationTurning, Facing, Boring, Back Turning, Back Boring
ANSI Size Code331
ISO Size Code160404
UNSPSC Code23242105
Insert Size Code331

Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.
