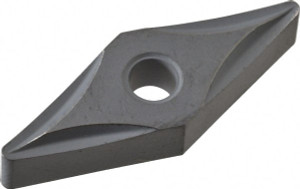

Kennametal VNMP332 K68 Carbide Turning Insert Uncoated, Neutral, 16.61mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 35° Diamond, Series KENLOC 1161200 - 62289582
Brand: Kennametal- SKU:
- 62289582
- ID:
- 672452
$30.70
Kennametal VNMP332 K68 Carbide Turning Insert Uncoated, Neutral, 16.61mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 35° Diamond, Series KENLOC
Manufacturer Part #: 1161200
S/N: 62289582
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | VNMP332 |
| ISO Insert Code | VNMP160408 |
| Relief Angle | 0 |
| Insert Style | VNMP |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 35 |
| Manufacturer Grade | K68 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | KENLOC |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Clamp, Pin |
| Width (Inch) | 3/8 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (mm) | 16.61 |
| Insert Length (Decimal Inch) | 1.3076 |
| Primary Workpiece Material | Non-Ferrous Metal, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, K, N, S |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 1161200 |
| Material Grade | C3 |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | Common |
| Cutting Edge Style | Honed |
| Industry Standard Number | VNMP332 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring, Back Turning, Back Boring |
| ANSI Size Code | 332 |
| ISO Size Code | 160408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
