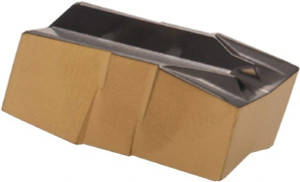

Iscar GIF5.90-0.20 IC808 Carbide Grooving Insert TiAlN Finish, Neutral, 5.9mm Cutting Width, 13mm Max Depth, Series Cut Grip 6404351 - 62353941
Brand: Iscar- SKU:
- 62353941
- ID:
- 648952
$63.41
Iscar GIF5.90-0.20 IC808 Carbide Grooving Insert TiAlN Finish, Neutral, 5.9mm Cutting Width, 13mm Max Depth, Series Cut Grip
Manufacturer Part #: 6404351
S/N: 62353941
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | GIF |
| Insert Size Code | 590020 |
| Cutting Width (Decimal Inch) | 0.2323 |
| Cutting Width (mm) | 5.90 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Maximum Depth of Cut (mm) | 13.00 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC808 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Rake | Positive |
| Insert Holding Method | Clamp |
| Insert Size | 590020 |
| Material Grade | Submicron |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Multi-use Tool | No |
| Series | Cut Grip |
| Coating Process | PVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.6024 |
| Overall Length (mm) | 15.30 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | F |
| Overall Width (mm) | 5.90 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.2323 |
| Coating/Finish | AlTiN, TiAlN, TiN |
| Single Or Double End | Double |
