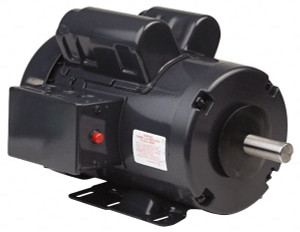

U.S. Motors 3/4 hp, TEFC Enclosure, No Thermal Protection, 1,140 RPM, 115/208-230 Volt, 60 Hz, Single Phase Capacitor Start-Cap Run Motor Size 56H Frame, Rigid Base Mount, 1 Speed, Ball Bearings, 10.05 Full Load Amps, Reversible T34C3JH - 62553300
Brand: U.S. Motors- SKU:
- 62553300
- ID:
- 573775
$1,102.48
U.S. Motors 3/4 hp, TEFC Enclosure, No Thermal Protection, 1,140 RPM, 115/208-230 Volt, 60 Hz, Single Phase Capacitor Start-Cap Run Motor Size 56H Frame, Rigid Base Mount, 1 Speed, Ball Bearings, 10.05 Full Load Amps, B Class Insulation, Reversible
Manufacturer Part #: T34C3JH
S/N: 62553300
UNSPSC: 26100000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Motor Type | Single Phase Capacitor Start-Cap Run |
| Enclosure Style | TEFC |
| Horsepower | 3/4 |
| Name Plate RPMs | 1140 |
| Voltage | 115, 208 to 230V |
| Frequency (Hz - 0 Decimals) | 60 |
| Frame Size | 56H |
| Mount Style | Rigid Base |
| Mount Type | Rigid Base |
| Bearing Type | Ball |
| Full Load Amperage | 10.05 |
| Insulation Class | B |
| Frame Material | Steel |
| Shaft Diameter x Length | 5/8 x 1-7/8 in |
| Full Load Efficiency Rating | 75.90 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| Applications | General Purpose |
| Overall Length (Decimal Inch) | 13.3800 |
| Motor Run Capacitor Micro Farid | 12.50 |
| Motor Run Capacitor Volts | 370 |
| Dayton Part Number | 6XJ17 |
| Thermal Protection | None |
| Number Of Speeds | 1 |
| Type | TEFC |
| Product Service Code | 6105 |
