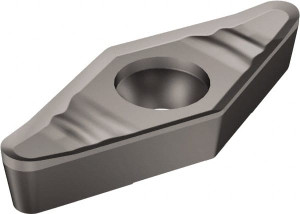

Sandvik Coromant VCGX332-AL H10 Carbide Turning Insert Uncoated, 15.81mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 35° Diamond 5755921 - 62639778
Brand: Sandvik Coromant- SKU:
- 62639778
- ID:
- 675162
$35.60
Sandvik Coromant VCGX332-AL H10 Carbide Turning Insert Uncoated, 15.81mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 35° Diamond
Manufacturer Part #: 5755921
S/N: 62639778
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | VCGX |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 35 |
| Manufacturer Grade | H10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | CoroTurn 107 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Insert Length (mm) | 15.81 |
| Insert Length (Decimal Inch) | 0.6223 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Superalloy, Titanium |
| Secondary Workpiece Material Code | S |
| Iso Code | VCGX 16 04 08-AL H10 |
| Chip Breaker | MMC |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
