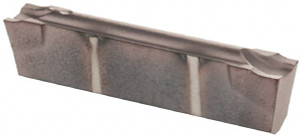

Kennametal A4C0305R10CF02 KCU25 Carbide Cutoff Insert AlTiN Finish, 10° RH Lead Angle, 3.05mm Cutting Width, 0.2mm Corner Radius, Series A4 4114289 - 62654470
Brand: Kennametal- SKU:
- 62654470
- ID:
- 647373
$46.99
Kennametal A4C0305R10CF02 KCU25 Carbide Cutoff Insert AlTiN Finish, 10° RH Lead Angle, 3.05mm Cutting Width, 0.2mm Corner Radius, Series A4
Manufacturer Part #: 4114289
S/N: 62654470
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | A4C |
| Insert Size Code | 0305 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCU25 |
| Cutting Width (Decimal Inch) | 0.1201 |
| Cutting Width (mm) | 3.05 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Right Hand |
| Lead Angle | 10 |
| Relief Angle | 2.00 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | CF |
| Series | A4 |
| Coating Process | PVD |
| Overall Length (mm) | 20.10 |
| Overall Length (Decimal Inch) | 0.7913 |
| Cutting Height (mm) | 4.01 |
| Cutting Height (Decimal Inch) | 0.1580 |
| Material Grade | C2, C6 |
| Insert Seat Size | 3 |
| Full Radius | No |
| Coating/Finish | AlTiN |
| Single Or Double End | Double |
