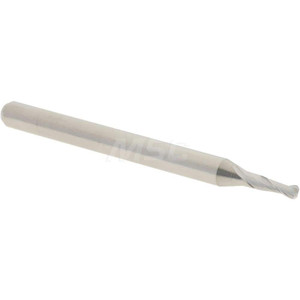

Accupro 1/16" Diam 2 Flute Solid Carbide 0.02" Corner Radius End Mill Uncoated, 1-1/2" OAL, 0.186" LOC, 1/8" Shank Diam, 30° Helix, RH Cut, RH Flute, Centercutting 6503645 - 62755566
Brand: Accupro- SKU:
- 62755566
- ID:
- 611793
$24.07
Accupro 1/16" Diam 2 Flute Solid Carbide 0.02" Corner Radius End Mill Uncoated, 1-1/2" OAL, 0.186" LOC, 1/8" Shank Diam, 30° Helix, RH Cut, RH Flute, Centercutting
Manufacturer Part #: 6503645
S/N: 62755566
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 1/16in |
| Mill Diameter (Decimal Inch) | 0.0625in |
| Number Of Flutes | 2 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 1-1/2in |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0200 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0630in |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Diameter (Inch) | 1/8in |
| Mill Diameter Tolerance | +0.000000/-0.001000 in |
| Shank Diameter Tolerance | -0.0001/-0.0003 in |
| UNSPSC Code | 27112803 |
| Material Grade | Micrograin |
| Series | Miniature |
