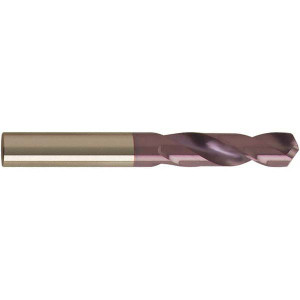

Guhring 0.238" 118° Spiral Flute Solid Carbide Screw Machine Drill Bit FIREX Finish, Right Hand Cut, 31mm Flute Length, 70mm OAL, Faceted Point, Straight Shank 9024630060400 - 62991195
Brand: Guhring- SKU:
- 62991195
- ID:
- 735896
$63.14
Guhring 0.238" 118° Spiral Flute Solid Carbide Screw Machine Drill Bit FIREX Finish, Right Hand Cut, 31mm Flute Length, 70mm OAL, Faceted Point, Straight Shank
Manufacturer Part #: 9024630060400
S/N: 62991195
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Letter) | B |
| Drill Bit Size (Decimal Inch) | 0.2380 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Faceted |
| Primary Workpiece Material | Aluminum |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7560 |
| Shank Diameter (mm) | 6.04 |
| Series | 2463 |
| Web Thinning | Web-Thinned |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.8640 |
| Maximum Drilling Depth (mm) | 21.94 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | +0.000 to -0.010 mm |
| Standards | DIN 6539 |
| Flute Length (Decimal Inch) | 1.2200 |
| Flute Length (Inch) | 1-7/32 |
| Flute Length (mm) | 31.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Specification Designation | DIN |
| Material Grade | K40 |
